Kessler CineDrive 200

Kessler CineDrive® is a revolutionary multi axis camera motion control system that puts the emphasis on filmmaker creativity. Never before has any one system provided the power and versatility required to give users multi axis control that is configurable enough to meet the needs of filmmakers in the studio and in the field as elegantly as CineDrive® does. Its modular design allows users to custom build their system in a matter of minutes or months, depending on budget and use. Whether for live-action, time-lapse or stop-motion, CineDrive® was built to give users robust key-frame motion control at their fingertips. Its rock-solid engineering and innovative technology ensures it performs today and will continue to for years to come.

Categories: ,

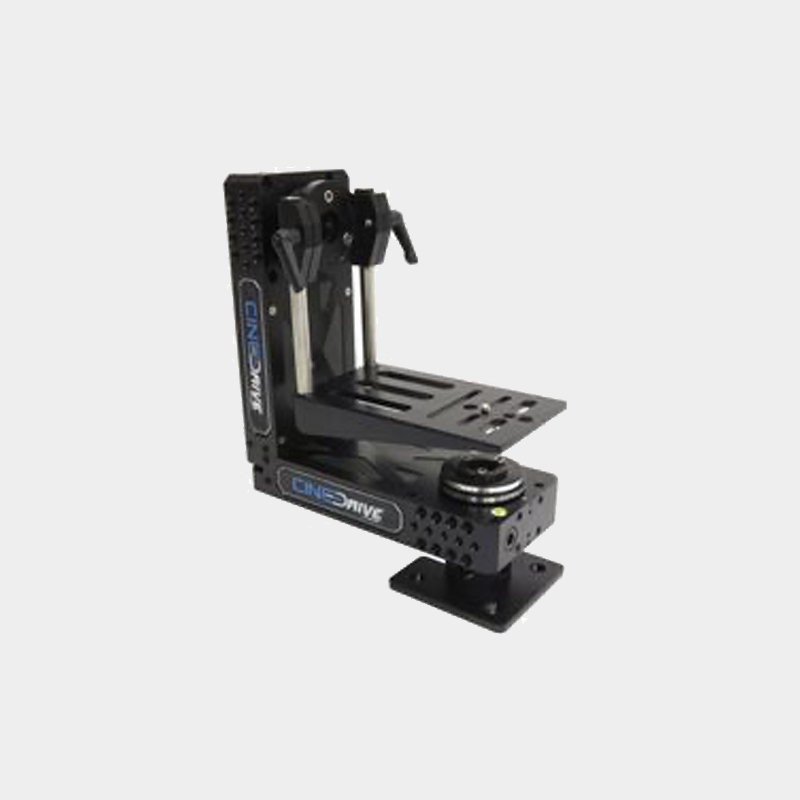

CineDrive Pan & Tilt Head

  • Load Capacity: 25 lbs.
  • Weight: 10.3 lbs.
  • Dimensions: 10.54″ x 12.19″ x 6.05″
  • Speed:
    • 27:1 – 106 degrees per second (recommended not to exceed 12lb load)
    • 50:1 54 degrees per second (up to 25lbs load on center of gravity)

CineDrive Motor

  • Max Speed: 3.10″ per second (7.87 cm per second)
  • Max Speed w/ Doubler: 6.20 per second (15.75 cm per second)
  • Vertical Weight Capacity: 30 lbs.
  • Horizontal Weight Capacity:
    • 25 LBS on CineDrive Pan & Tilt Head
    • 35 LBS on CineSlider directly, when mounted on a tripod using one center support. 80 LBS when fully supported on both ends.
  • CineDrive Pan & Tilt Head
  • 5’ Control Cable
  • Brain Unit
  • CineDrive Slider
  • Motor: 200 Series
  • Shuttle Pod
  • 100mm Bowl Adaptor
  • Various Cables
  • 4ft Rail Extension
