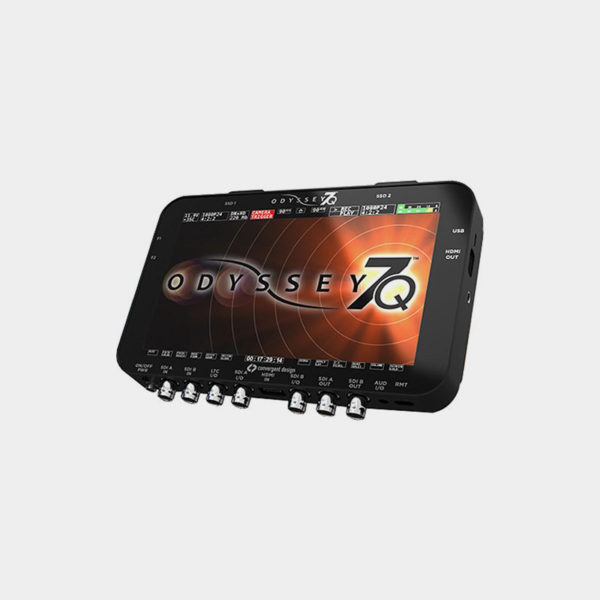

Odyssey 7Q Monitor & Recorder

The Convergent Design Odyssey7Q Sony FS RAW Monitor & Recorder is both a cinematography recorder and high-end professional monitor. When paired with Convergent Design SSD, the Odyssey7Q can do both compressed and uncompressed recording. This monitor and recorder comes with a spare Sony battery and corresponding plate and there is also the option to power the unit via the included AC adapter. Other features include focus assist, quad stream displaying (display 4 independent streams at once), and touchscreen.

Categories: ,
  • Screen Size: 7.7″
  • Resolution: 1280×800
  • Panel Type: OLED
  • Contrast Ratio: 3400-1
  • Native Aspect Ratio: 16:9
  • Viewing Angle: 176º
  • Bit Depth: 8-Bit
  • Ports: 2 x HDMI, 6 x HD/SD-SDI, USB, 3,5 Headphone Jack
  • Touchscreen
  • 2 x 2.5″ SSD Slots (1 512GB SSD Included)
  • FS700 4K RAW to Apple ProRes 422(HQ) / 10-bit / 23.98, 25, 29.97
  • Supports Sony FS700 4K & 2K RAW (High Bit-Depth HD Derived from 4K, Recorded as CinemaDNG)
  • FS 4K RAW Frame Rates: 23.98, 25, 29.97, 50, 59.94 (FS700 ONLY: 4K 440 Frame Burst Mode: 100, 120)
  • FS 2K RAW frame rates: 23.98, 25, 29.97, 50, 59.94, 100, 120, 200*, 240* (*2K RAW 200 FPS and 240 FPS Require 2 SSDs to Simultaneously Record)
  • Odyssey 7Q
  • Convergent Design 512GB SSD
  • Odyssey AC power supply
  • 2x Batteries
  • Sony dual battery charger
  • SSD to USB 3.0 Reader
  • Weight: 9.9 lbs
  • D-Tap cable
  • 2x Blue BNC cable
  • Damage to the screen will result in a fee.
  • 2K and 4K RAW recording requires the use of 2 SSDs (rentable separately).
